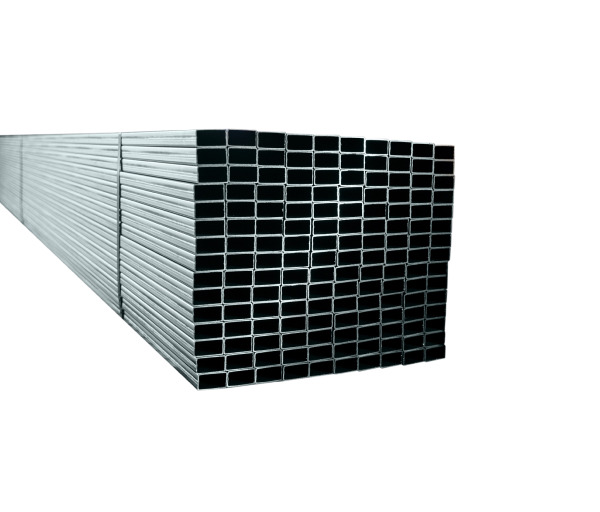

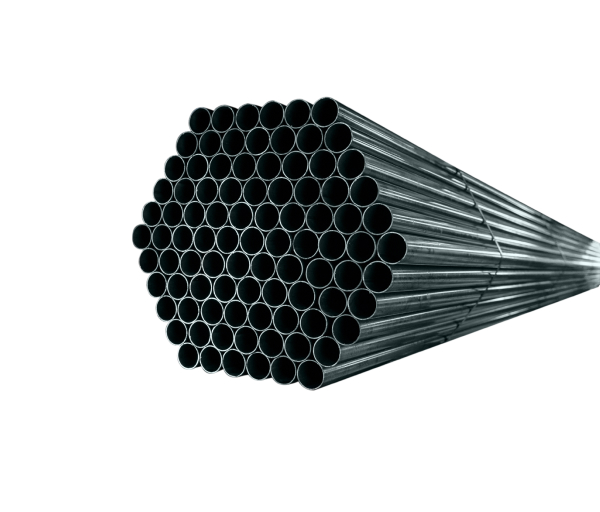

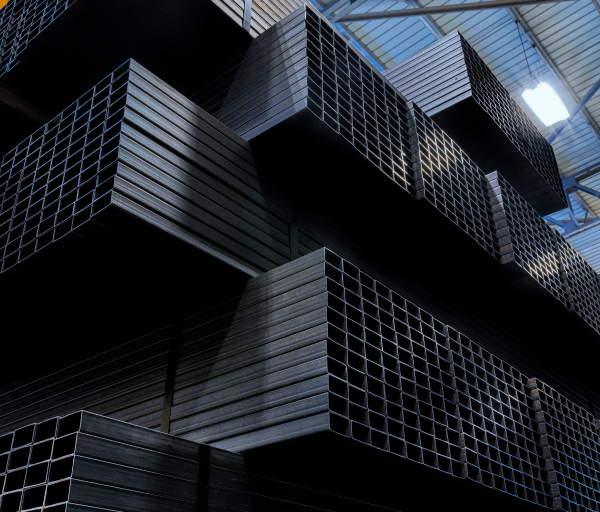

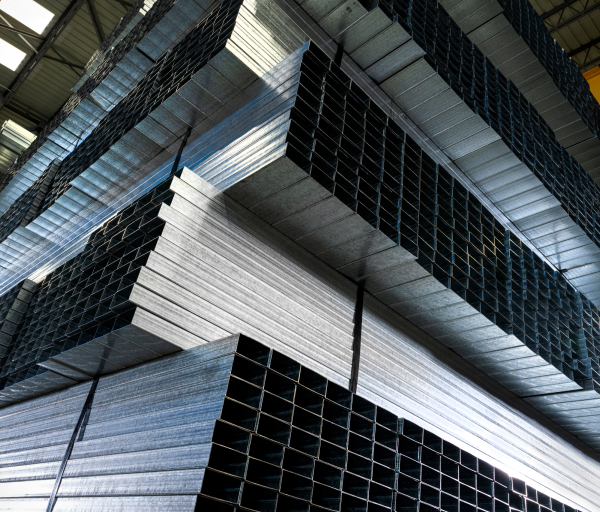

Steel Tubes (Section)
Sections for structural purposes. The standard that governs the manufacture of these tubes is ASTM A513. There are: squared, rectangular and round.
Black round tubes known as muffler tubes and galvanized round tubes known as screen tubes.
Applications
They are used in the elaboration of metal and blacksmith structures, doors and chairs, mufflers, prefabricated parts, bumpers, exterior panels, installation of cyclonic mesh and roofing of lightweight structures, light construction with drywall. They resist the normal workloads of a dividing wall, such as shelves, frames, mirrors, kitchen cabinets.
Presentation and Packaging
Bundled with 20 foot length units.
| Geometric Shape | Thickness (mm) | Dimensions (in) | Black | Galvanized |
|---|---|---|---|---|
|
Rectangular |
1.20 1.55 1.20 1.55 1.55 1.55 1.55 1.55 |
1 1/2 x 3/4 1 1/2 x 3/4 2 X 1 2 X 1 3 X 1 1/2 3 X 2 4 X 2 2 3/8 X 1 1/2 |
|
|
|
Square |
1.20 1.55 1.20 1.55 1.55 1.55 1.20 1.55 1.20 1.55 2.25 |
1/2 x 1/2 1 1/2 x 1 1/2 1 x 1 1 x 1 2 x 2 3 x 3 3/4 x 3/4 3/4 x 3/4 1 1/4 x 1 1/4 1 1/4 x 1 1/4 4 x 4 |
|
|
|
Round |
1.20 1.20 1.20 1.20 1.20 1.20 1.55 1.55 1.55 1.55 |
1 1/2 1 1/4 1 3/8 1 2 3/8 2 1 1/2 1 3/4 2 3 |
|
|
