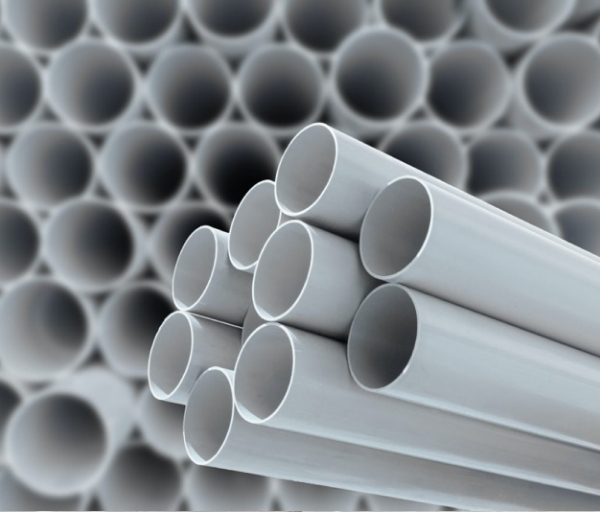

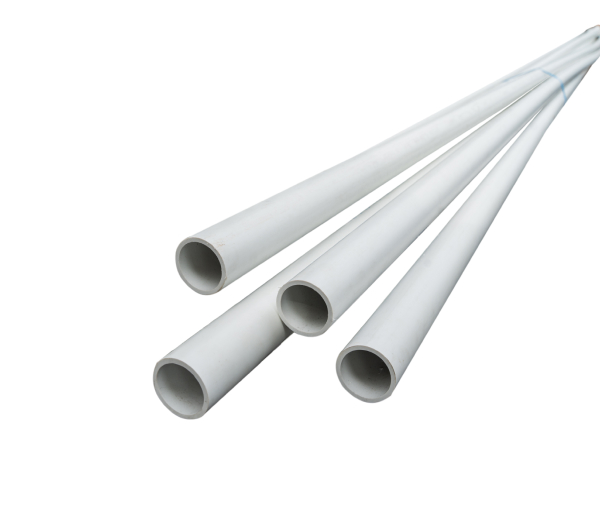

PVC pipes
The PVC parts we offer are the perfect fittings for our pipes. They are available in two ranges: pressure (SCH-40) and drainage (DWV). They are used for the transport of fluids, vent ducts, drains, etc. They are available in the range of ½" to 4" diameter.
They are produced by injection molding process, which consists of a PVC (Poly Vinyl Chloride) mixing and plasticizing system designed to inject it under high pressure. Once it is molten, it is poured into a metal mold in whose cavity or cavities is the shape of the desired piece.
Among the benefits of using PVC fittings, we can highlight:
Fast installation Cost-effective compared to metal parts Smooth inner wall Easy to transport.
PVC products are exclusive to the regional market.
Exclusive for the regional market
SCH
| Diameter (in) | SCH-40 (PSI Pressure) |
|---|---|
|
1/2 3/4 1 1 1/4 1 1/2 2 3 4 6 8 10 12 |
600 480 450 370 330 280 260 220 180 160 140 130 |
ASTM D2241
| SDR (Sandar Diameter Ratio) | Pressure (PSI) |
|---|---|
|
SDR 13.5 SDR 21 SDR 26 SDR 32.5 SDR 41 SDR 21 Drenaje |
315 200 160 125 100 80 (-) |
ASTM D1785
| Diameter (in) | SCH-40 (PSI Pressure) |
|---|---|
|
1/2 3/4 1 1 1/4 1 1/2 2 3 4 6 8 |
850 690 630 520 470 400 370 320 280 250 |
